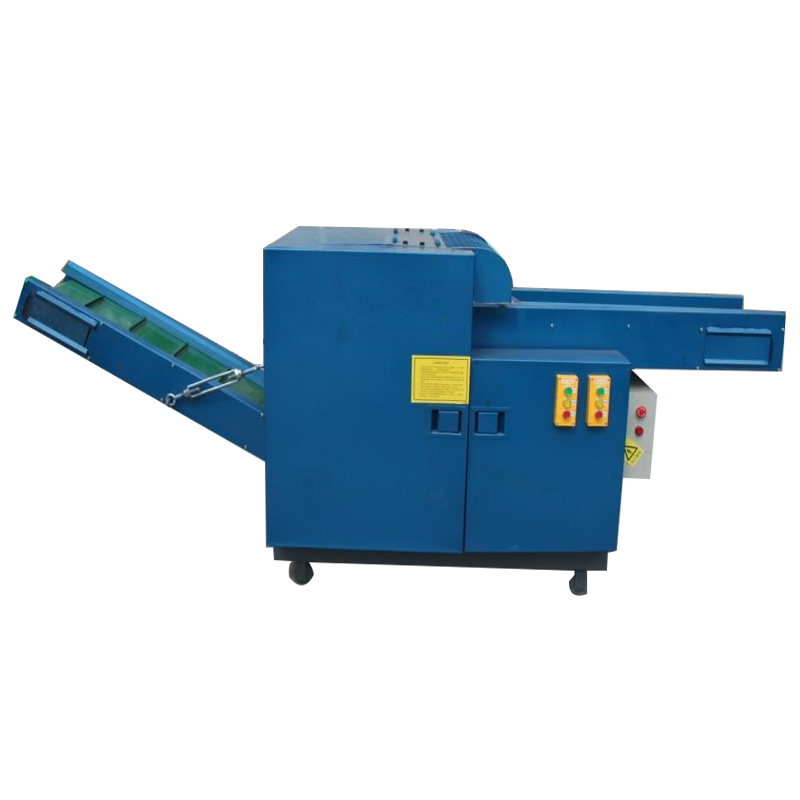

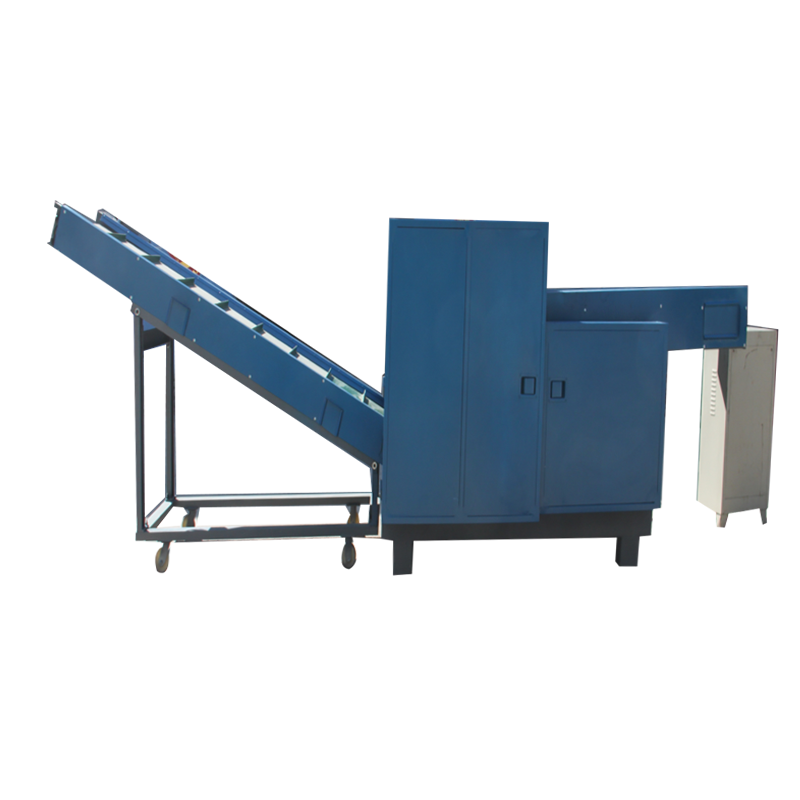

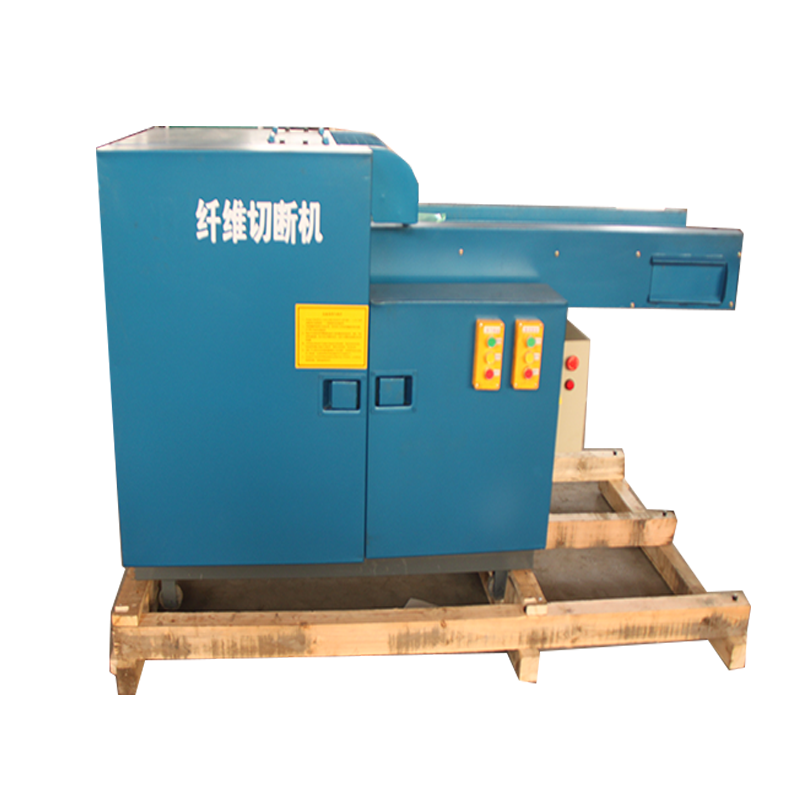

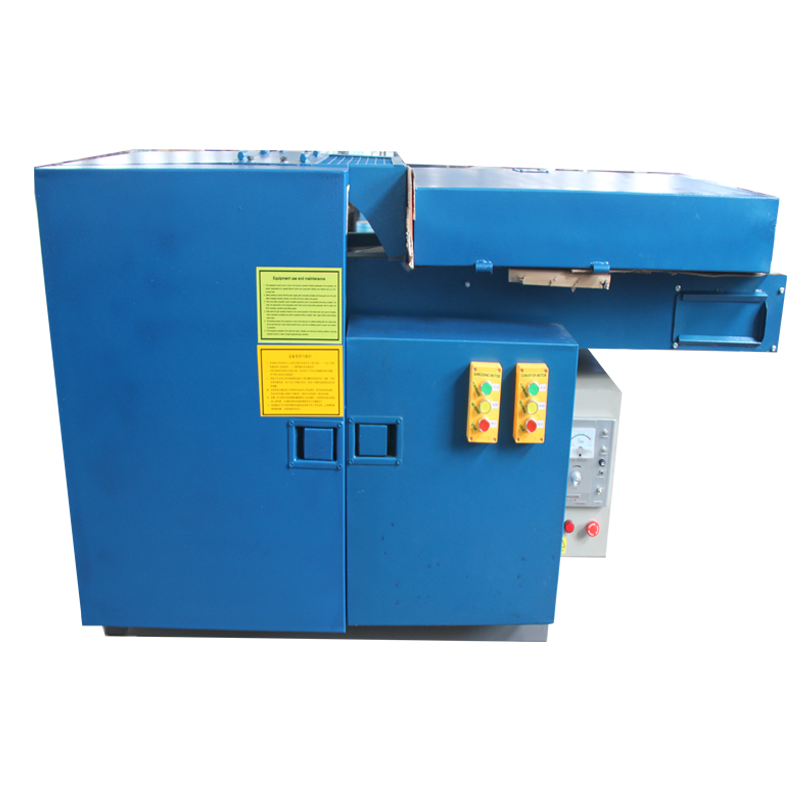

Textile cutting machine/ Yarn cutting Machine

This machine is emerging of a new type of mechanical equipment, its English name (Rag cutting machine), is to put the cloth and similar to the textile items chopped thin down as filaments, square one single fiber, short fibers, or debris, flakes, powder state, to meet the needs of the human production and living of production equipment.

 Technical parameter of waste cloth recycling machine

Model

MN--500A

MN-800C

MN-1200A

Power

3kw

5.5kw

9kw

Dimension

1.8*1*1.1m

3.2*1*1.1m

6*1.4*1.2m

Capacity

300kg/h

800kg/h

1000-1500kg/h

Cutting times

288/min

432/min

777/min

Conveyor

1000*350mm

1400*350mm

2800*700mm

Output conveyor

NO

1400*350mm

2800*700mm

Cutting thicknes

20mm

30-50mm

30-60mm

3. Features of waste cloth recycling machine

1) New rack structure is scientific, reasonable and safe, the performance is reliable; operation is

stable, and easy to handle.

2) Output is high, good loosing and cleaning effects, low-loss, environmental and low noisy.

3 )Adopt to oblique gear speed reducer make the good adaptability during the long time working,

and will not be heat, has long life time.

4 )Equipped with the new designed rack, loosing and recycling combined working models, graduallyprocessing materials, reduce the damage to fiber, improve the length of fiber.

5) Special structure roller and arc-shaped cotton feeding board, and has long life time
