Hot Sale High Quality Customized CNC Pipe Automatic Hole Punching Machine

Features of Steel Pipe Punching Machine :
1. Change mold easily, We can customize it as per request.

2. The hole shape can be customized as per the request.

3. Hydraulic-cylinder control ,more stable

4. Punching holes are smooth and no burrs and no deformation.

5. Half Hole or Completely hole are available

Feature of China factory cheap hydraulic hole punch machine CNC tube punching machine:

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function, equipped with hydraulic and Servo System.

2.Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skillful workers can change the mould within 10 minutes.

3.Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

4.When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing. In addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

5.The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.



Technical details of Steel Pipe Punching Machine :



Model

MN-125

MN-100

MN-80

Hydraulic cylinder dia

125mm

100mm

80mm

Hydraulic oil tank

2 pc

2 pc

2 pc

Pressure

About 30T

About 20t

About 12t

Motor power

7.5 kw

5.5kw

4kw

Voltage

380v 50hz 3phase

380v 50hz 3phase

380v 50hz 3phase

Working speed

30-60times/min

30-60times/min

30-60times/min

Punching hole size

As require

As require

As require

Punching thickness(for steel)

0.5-4mm

0.5-3mm

0.5-2 mm

Punching tube length

3-6m

3-6m

3-6m

Tube support frame length

3m

3m

3m

Punching molds with machine

2pcs

2pcs

2pcs

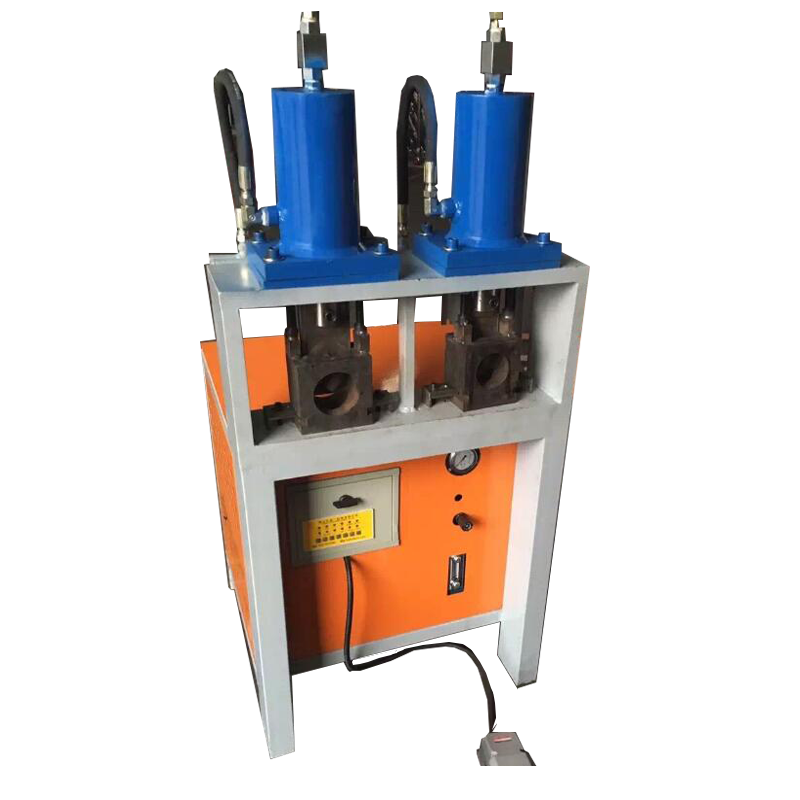

Picture of Steel Pipe hole Punching Machine
